How to check and change a machine fuse

Here are the fuse types for each machine. Click on the link below to purchase a 4 pack of fuses for your machine:

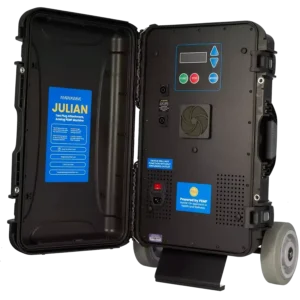

• Sol, Julian & Julian Duo: 3A, 250V 5X20 mm

• Pulse Pro: 3A 250V 1¼ x ¼ (AGC-3)

• Spiro: 1.5A, 250V, 5x20 mm

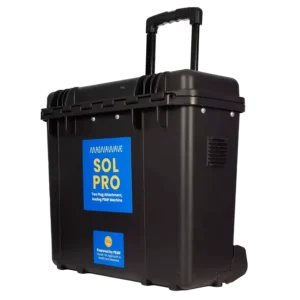

• Sol Pro (If purchased prior to April 2023): 3A, 250V 5X20 mm

• Sol Pro (If purchased after April 2023): 3A 250V Slow Blow

• Maia Pro 120V 1.5A, 250V, 5x20 mm

• Semi 10 120V 1A, 250V, 5x20 mm

• Semi 10 240V 0.5A, 250V, 5x20 mm

• Maia Pro 240V 0.75A, 250V, 5x20 mm

Watch this video showing how to Check and Change your Fuses on machines purchased before April 2023 with a Red power switch.

Watch this video showing how to Check and Change your Fuses on machines purchased after April 2023 with a BLACK power switch.

If you're experiencing an issue with your machine after checking or replacing the fuses, fill out the RMA Request Form to initiate a RMA repair request.

How to Check and Change your Fuses on machines purchased before April 2023 with a Black power switch.

Before initiating fuse replacement, power the machine off and unplug the power cord. The fuses are located under the rectangular tab between the on/off switch and the power cord socket on the Power Entry Module on your machine.

1. Look for the rectangular tab, with a small flathead screwdriver, gently push in each tab located on either side to release the fuse housing. Inside you’ll see one or two small glass fuses.

2. Remove the fuses to check if they are clear and the filament is still in tack. One or both could need replacement.

3. If fuses need replacement, first wipe the fuse housing with a clean, dry cloth then replace the fuses with the recommended fuse type listed in your Machine’s User Manual or on the fuse housing piece.

4. Slide the housing back into the unit.

Connect your coil and power cord, flip switch to the on position to check for power to the machine.

How to Check and Change your Fuses on machines purchased before April 2023 with a Red power switch.

Before initiating fuse replacement, power the machine off and unplug the power cord. The fuses are located under the rectangular tab between the on/off switch and the power cord socket on the Power Entry Module on your machine.

1. Look for the rectangular tab, with a small flathead screwdriver and gently lift up on the tab. Inside you’ll see one or two small glass fuses.

2. Remove the fuses to check if they are clear and the filament is still in tack. One or both could need replacement.

3. If fuses need replacement, first wipe the fuse housing with a clean, dry cloth then replace the fuses with the recommended fuse type listed in your Machine’s User Manual or on the fuse housing piece.

4. Slide the housing back into the unit.

Connect your coil and power cord, flip switch to the on position to check for power to the machine.

Please Note: The Pulse Pro has only 1 fuse and it is located in the back of the machine. The fuse housing twists out of the machine then the fuse can be checked/cleaned/replaced before inserting the housing back in the machine.
